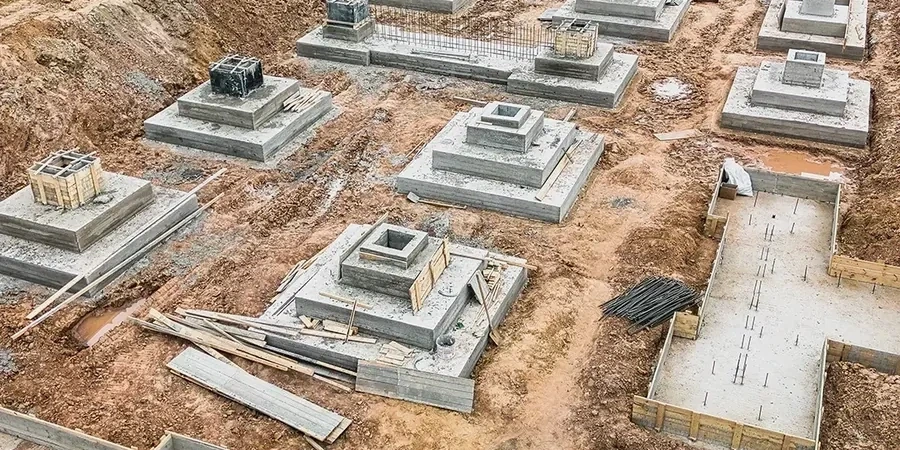

Pile Foundation Design in Portsmouth: Geotechnical Certainty for...

Too many projects on Portsea Island get priced without understanding what lies beneath the historic fill. A simple borehole log might show chalk at depth, but without a proper pile foundation design, you risk differential settlement across a single footprint. We see it often near the Camber Docks, where old timber piles and buried quay walls complicate the stratigraphy. A pile foundation design for Portsmouth must account for the Lambeth Group strata, the variable chalk weathering grade, and the aggressive sulphate-rich groundwater typical of the south coast. We deliver designs that work from day one, backed by in-situ permeability data to confirm groundwater chemistry before specifying concrete grade.

A pile in Portsmouth is only as reliable as its understanding of the Gault Clay and the solution features within the chalk.

Process overview

A recent waterfront development near Gunwharf Quays required a pile foundation design that could handle 600 mm of tidal fluctuation in the made ground. The challenge was not just bearing capacity. It was lateral spread in the reworked clay and the risk of softening at the pile head. Our Portsmouth pile foundation design approach starts with the site investigation data. We model the chalk socket length under axial and lateral load, applying BS EN 1997-1:2004 Design Approach 1. For a typical Portsmouth scheme, we define the undrained shear strength of the superficial deposits, assess negative skin friction where a car park was demolished, and verify structural capacity under the column loads. The output is a piling schedule, a pile cap layout, and a construction specification that a local contractor can execute without guesswork. We also factor in noise and vibration limits. Portsmouth City Council enforces strict amenity controls, so our designs often specify continuous flight auger piles to reduce disturbance in tight urban plots.

Pile Foundation Design in Portsmouth: Geotechnical Certainty for Southern Coastal Ground

Local context

Portsmouth’s groundwater hides a particular aggressiveness. Sulphate concentrations in the tidal zone can chew through standard Portland cement in a decade. A pile foundation design without a DC-class concrete specification is a latent defect waiting to happen. We’ve seen pile caps near the Eastern Road where chloride ingress from sea spray wasn’t modelled, and the reinforcement is now spalling. Another local failure mode is chalk dissolution. The Portsdown Chalk can contain solution features and soft infill that a standard SPT might miss. Our pile foundation design protocol in Portsmouth mandates a thorough desk study of historic mapping, plus downhole geophysics where the risk of dissolution is high. Ignoring these local quirks isn’t a statistical probability. It’s a predictable cost.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Reference standards

BS EN 1997-1:2004 (Eurocode 7), BS 8004:2015 (Code of practice for foundations), CIRIA C574 (Engineering in chalk), ICE Specification for Piling and Embedded Retaining Walls (3rd edition), BS 5930:2015+A1:2020

Additional services

Axial and Lateral Pile Capacity Analysis

We calculate shaft and base resistance using site-specific parameters, accounting for Portsmouth’s reworked clay and variable chalk. Lateral capacity is checked under wind and berthing loads for marine structures.

Constructability Review and Piling Specification

We produce a piling specification ready for tender, covering concrete grade, reinforcement, socket length, and allowable installation tolerances. We also advise on pre-boring through obstructions in the made ground.

Typical parameters

Parameter	Typical value
Design standard	Eurocode 7 (BS EN 1997-1:2004)
Chalk weathering grade	Classified per CIRIA C574
Typical pile type	CFA or rotary bored
Shaft resistance assessment	Effective stress method
Base resistance in chalk	Nq method with CIRIA reduction factors
Settlement analysis	T-z curves or equivalent raft method
Concrete specification	Design Chemical Class DC-3 minimum for sulphates

Quick answers

What does a pile foundation design cost for a typical Portsmouth project?

For a complete design package including vertical and lateral analysis, pile schedule, and construction specification, the fee ranges from £1,310 to £4,330 depending on the number of piles and the complexity of the ground conditions. A straightforward single-pile analysis is at the lower end. A full piled raft for a waterfront block with complex loading falls at the upper end.

How does the chalk affect pile design in Portsmouth?

The Portsdown Chalk varies from structureless Grade D to blocky Grade A. We apply the CIRIA C574 framework to assess shaft resistance and base capacity, factoring in fracture spacing and infill. The design must also account for the risk of chalk dissolution and the presence of soft putty chalk at the interface.

Can you design piles for sites with restricted access in Portsmouth?

Yes. Many Portsmouth sites have narrow access between Victorian terraces. Our designs consider mini-piling or CFA rigs that can work within 3-metre headroom. We specify pile diameters and reinforcement cages that suit the rig’s capabilities without compromising the geotechnical capacity.
